water bottle filling machine

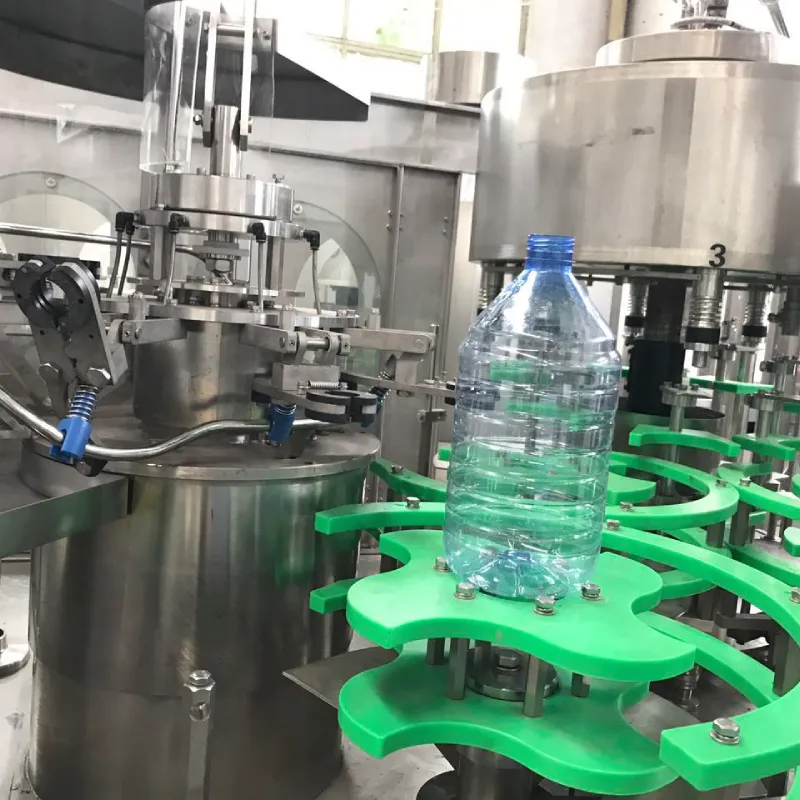

The water bottle filling machine is the core equipment in any bottled water production line. It is designed to automatically clean, fill, and seal plastic (PET) bottles with still water, such as purified water or natural mineral water. For producers of drinking water, this machine is essential for achieving high output, maintaining strict hygiene standards, and ensuring consistent product quality. It transforms empty bottles into finished, market-ready products with minimal human intervention, making the entire operation efficient and cost-effective.

008613394191191

faygo2028@gmail.com

8613394191191

water bottle filling machine

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product introduction

Key Features and Benefit

The design of a modern water filling machine focuses on three main goals: speed, hygiene, and reliability.

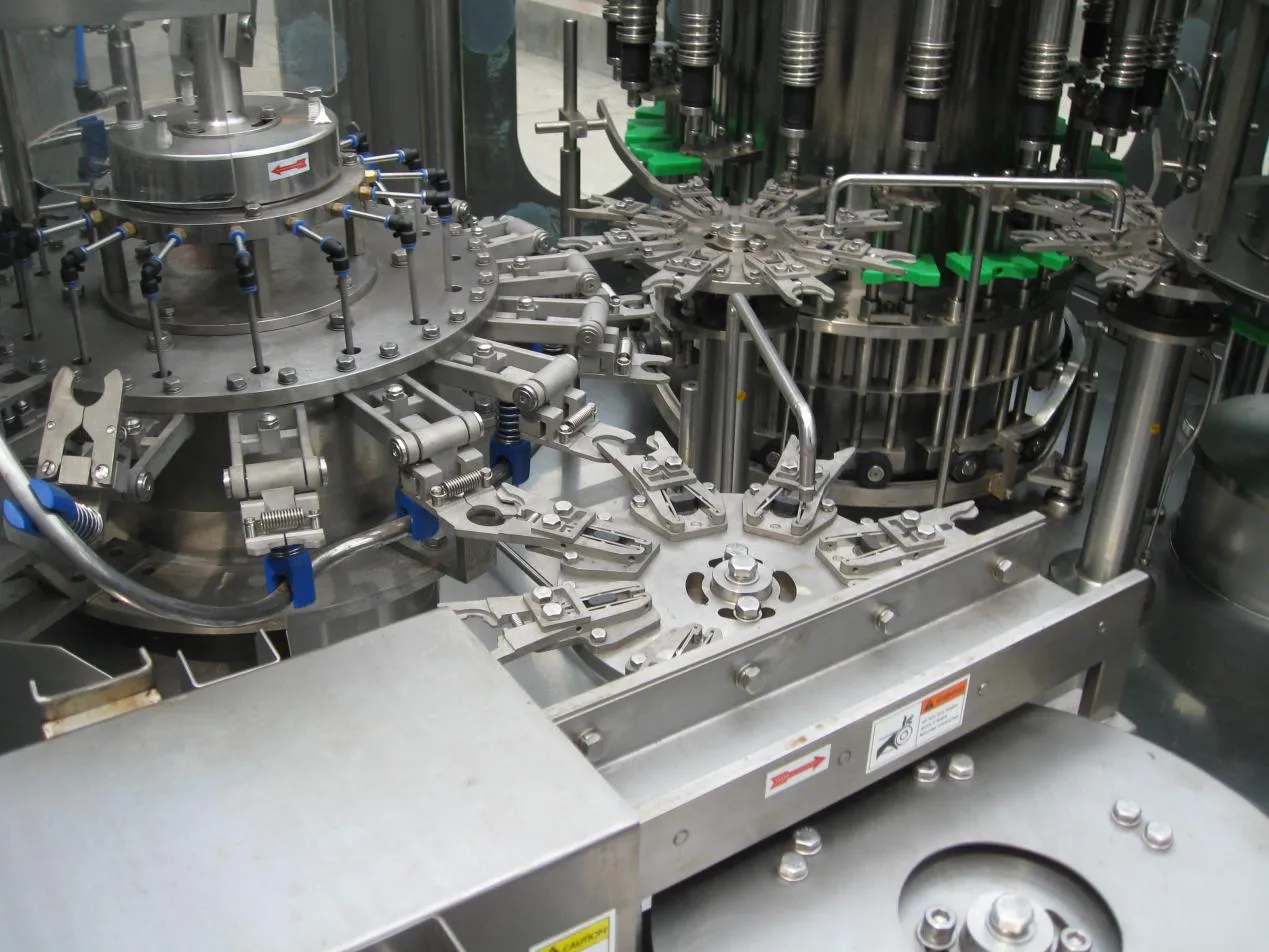

1. High-Speed Integrated Washing, Filling, and Capping: This machine combines three critical steps into one seamless, continuous process. Empty bottles are first inverted and thoroughly rinsed with purified air or water. They then move directly to the filling station, where multiple filling valves quickly and accurately fill them to the preset level. Immediately after, the bottles are sealed with caps at the capping station. This integrated monoblock design saves space, reduces contamination risks, and enables impressive production outputs. Standard models are available with speeds ranging from 4,000 to over 48,000 bottles per hour (BPH), making them suitable for both medium and large-scale production.

2. Hygienic Construction and Easy Maintenance: All parts that come into contact with water are made from high-quality, food-grade stainless steel (such as SUS304 or SUS316). This material is non-toxic, corrosion-resistant, and easy to clean and sterilize. Many machines support a CIP (Cleaning-In-Place) system, which allows for automated internal cleaning and sanitization without the need for disassembly. This feature is crucial for maintaining the highest standards of food safety and ensuring the pure taste of the water.

3. Simple Operation and Consistent Performance: The machine is controlled by a user-friendly PLC (Programmable Logic Controller) system with a touchscreen interface. Operators can easily monitor the entire process, adjust filling volumes, and view production data. The machine is designed for stability and low maintenance, ensuring consistent performance with minimal downtime. Its simple mechanics and accessible design make it a reliable long-term investment for any water bottling business.

Primary Applications

This versatile filling machine is perfectly suited for packaging various types of still water in PET bottles, including:

Purified Drinking Water: The standard choice for producing bottled water that has been processed by reverse osmosis (RO) or distillation.

Natural Mineral Water: Gently handles water sourced from natural springs, preserving its original mineral content.

Spring Water: Ideal for filling naturally collected spring water.

Distilled Water: Suitable for filling pure distilled water used in laboratories and specific consumer markets.

By offering a perfect balance of high efficiency, robust construction, and simple operation, a plastic bottle water filling machine is a fundamental asset for any company aiming to build or expand a successful and profitable water bottling operation.
