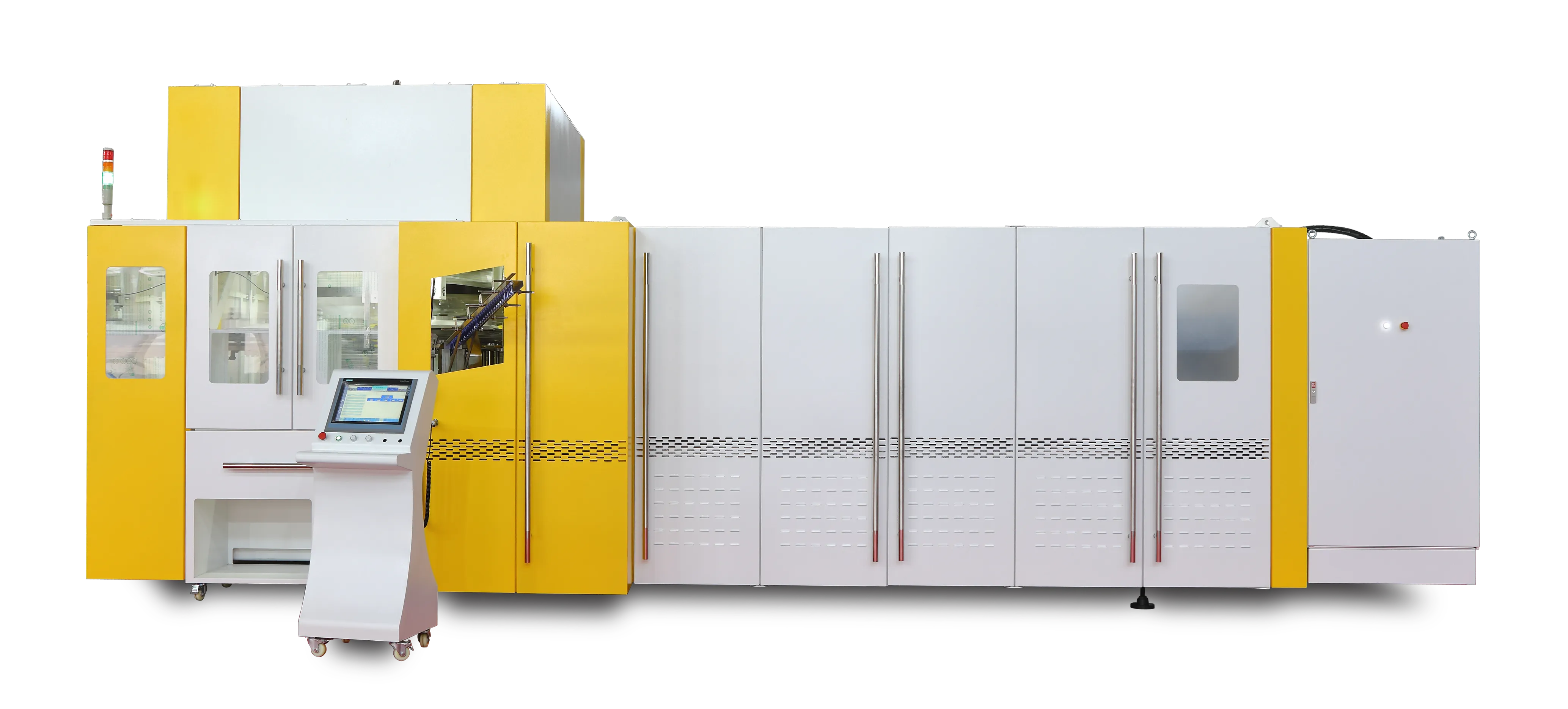

he Rotary Blowing-Filling-Capping Machine integrates the blowing, filling, and capping processes into a single, high-efficiency combiblock system. Designed for high-volume production of PET bottles for liquid products such as water, beverages, juices, and oils. The maximum production capacity can reach 48,000 bottles per hour.this machine exemplifies innovation, hygiene, and operational intelligence, making it an ideal solution for modern beverage plants aiming to optimize their production lines.

008613394191191

faygo2028@gmail.com

8613394191191

Rotary Blowing-Filling-Capping Machine
Rotary Blowing-Filling-Capping Machine
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product introduction

Technical parameter

Technical Parameters CGX6-32-10 CGX8-36-12 CGX10-40-15 CGX12-45-18 CGX14-50-18
Products Parameter Max Capacity ml 250-2000/2500 250-2000/2500 250-2000/2500 250-2000/2500 250-2000/2500
Max Bottle Boby Height mm 340 340 340 340 340
Max Bottle Body Diameter mm 100(quick change)/115 100(quick change)/115 100(quick change)/115 100(quick change)/115 100(quick change)/115
Max Bottle Preform Height mm 150 150 150 150 150
Support ring Diameter mm 36 36 36 36 36
Theoretical output Capacity （500ml） B/H 14000 19000 24000 28800 31500
Host Machine Parameter Installed Capacity KW 170 190 210 230 250
Operating Power KW 60 65 75 90 105
Air Capacity Consumption m3/min 4.8 6.2 7.8 8.8 10.2
Dimension Host Machine Size MM 11000*3600*3200 12000*3800*3200 12000*3800*3200 13000*4600*3200 13000*4600*3200
Weight T 16 18 20 22 25
 Technical Parameters CGX16-60-20 CGX18-72-24 CGX20-72-24 CGX24-80-30
Products Parameter Max Capacity ml 250-2000/2500 250-2000/2500 250-2000/2500 250-2000/2500
Max Bottle Boby Height mm 340 340 340 340
Max Bottle Body Diameter mm 100(quick change)/115 100(quick change)/115 100(quick change)/115 100(quick change)/115
Max Bottle Preform Height mm 150 150 150 150
Support ring Diameter mm 36 36 36 36
Theoretical output Capacity B/H 36000 40000 43000 48000
Host Machine Parameter Installed Capacity KW 270 290 315 320
Operating Power KW 120 135 165 170
Air Capacity Consumption m³/min 10.9 12.1 13.3 15.6
Dimension Host Machine Size MM 14700*5200*3200 14700*5200*3200 15000*5300*3200 15000*5300*3200
Weight T 26 27 28 29





Key Features and Benefit

1.High-Speed Integrated Production

This machine combines three critical steps—blowing, filling, and capping—into one continuous, automated operation. This integrated approach significantly boosts productivity, with models like the CGX24-80-30 achieving impressive output speeds of up to 48,000 bottles per hour (BPH).







2.Advanced Energy-Saving Systems

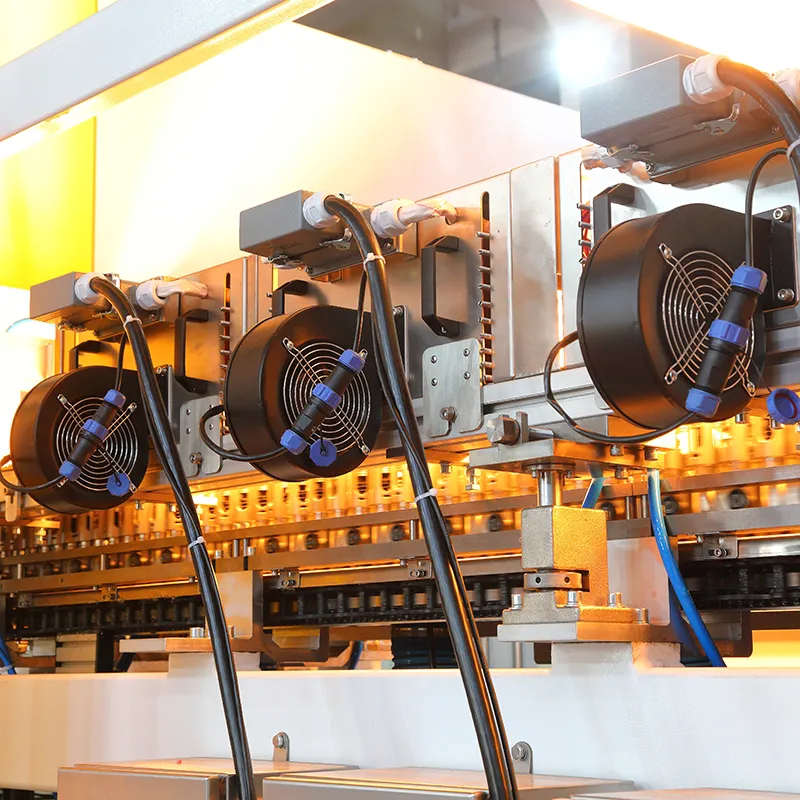

 Faygo Union has incorporated several eco-friendly technologies to reduce operational costs and environmental impact. The machine features an innovative air recovery system that recycles exhaust gas, pressurizes it, and reuses it for pre-blowing, effectively reducing overall compressed air consumption. It is also equipped with an infrared heating furnace paired with ceramic plate energy storage technology and an optimized water cooling system for superior heat management, contributing to lower energy expenditure.







3.Precision Engineering and Hygiene:

To ensure the highest product quality, the machine utilizes a servo control system for precise positioning and displacement of the stretch rods. The imported magnesium-aluminum molds are lightweight and crafted through multi-axis precision machining for high accuracy. Furthermore, it is built with full stainless steel contact parts and is complemented by an ion air dust removal system and a CIP (Cleaning-In-Place) system, guaranteeing a sterile production environment suitable for food and beverage standards. The use of robotic hands for non-contact bottle handling further prevents secondary pollution.







4.Smart Operation and Flexibility:

The user-friendly interface, featuring a 10-inch touchscreen with multi-language support, allows operators to monitor over 20 sensor parameters in real-time. Its modular design facilitates quick bottle changeovers, enabling the line to switch between different bottle specifications (ranging from 0.25 to 2 liters) in as little as half an hour. This makes it perfectly suited for production lines that handle multiple SKUs.





Primary Applications

The Faygo Union Rotary Blowing-Filling-Capping Machine is engineered for a wide range of applications in the liquid packaging industry. It is perfectly suited for producing:



  •  Water: Still and purified water in various bottle sizes.
  •  Beverages: Non-carbonated drinks such as juices and teas.
  •  Edible Oils: Cooking and salad oils.
  •  Liquid Food Products: Other non-gas liquids requiring hygienic packaging.
