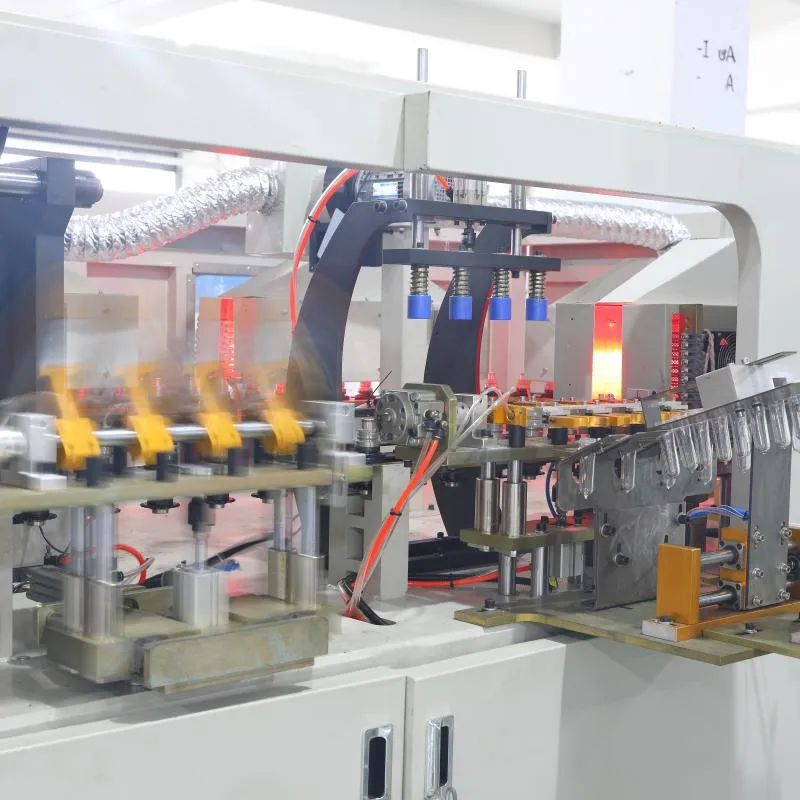

Automatic PET Bottle Blowing Machine

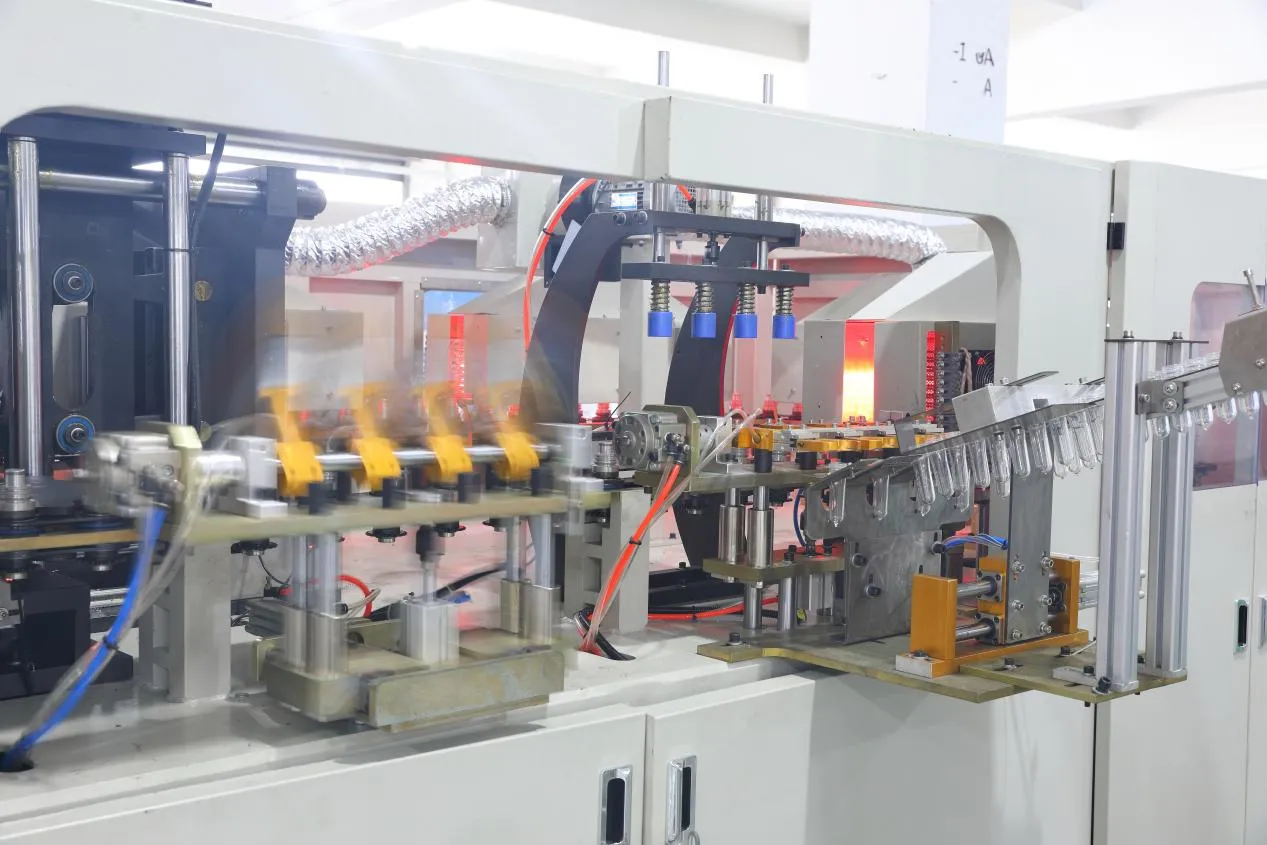

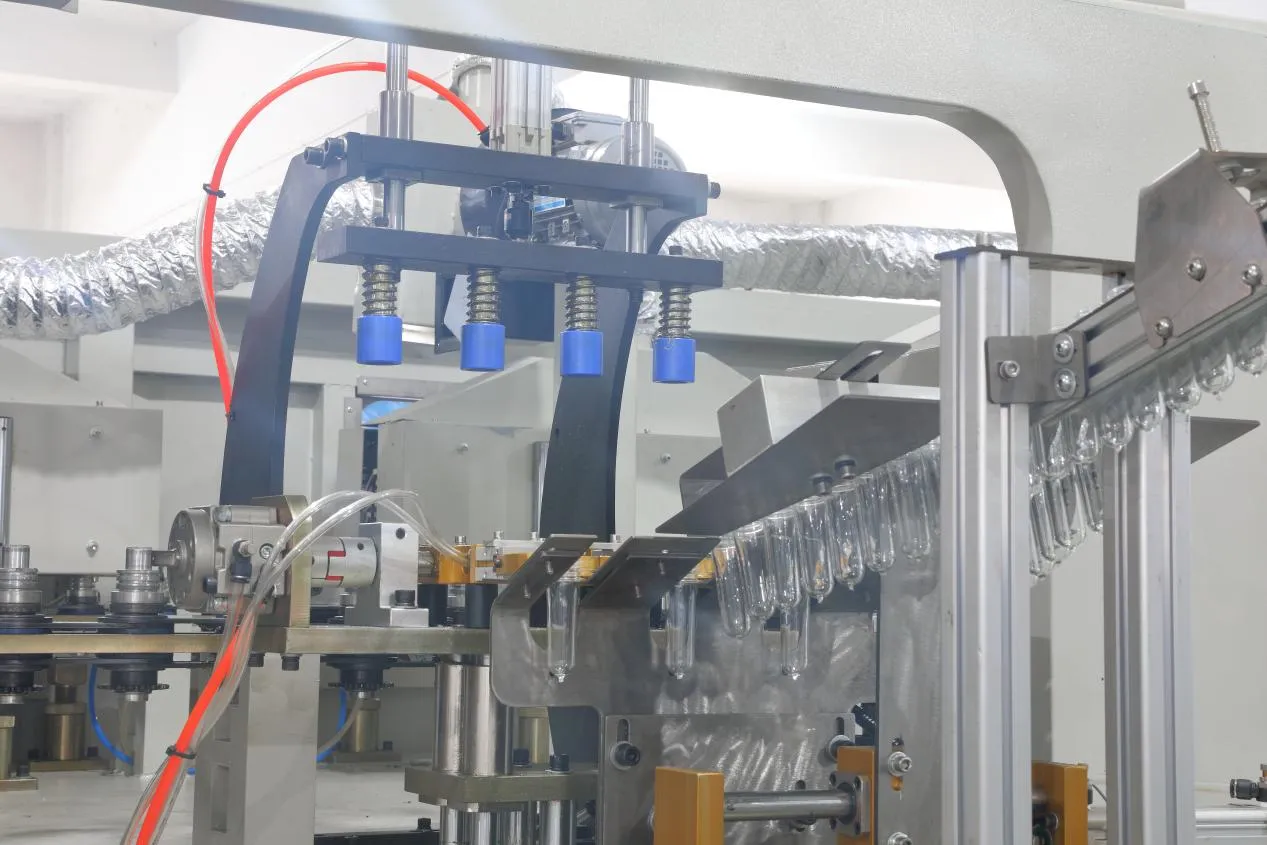

Our PET Bottle Blowing Machine is designed to transform PET preforms into strong, clear, and ready-to-use bottles with high efficiency and reliability. It is the perfect production solution for small to medium-sized businesses and for filling lines that require flexible output. The machine is built to deliver consistent quality for a wide range of bottle sizes, making it an excellent investment for your packaging operations.

008613394191191

faygo2028@gmail.com

8613394191191

Automatic PET Bottle Blowing Machine

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product introduction

Technical parameter

Category	Parameter	Unit	YDBA-A20L-1	YDBA-A20L-2
Host Machine Parameter	Cavity	pcs	1	2
	Clamping Force	KG	65000	65000
	Mold Route	mm	320	320
	Stretching Rod Route	mm	460	460
	Bottom Mold Route	mm	50	50
	Bottle Spacing	mm	300	300
	Bottle Preform Number	pcs	80	78
Products Parameter	Max Volume	ml	20000	20000
	Max Bottle Body Height	mm	460	460
	Max Bottle Body Diameter	mm	230	230
	Max Bottle Preform Height	mm	240	240
	Max Bottle Mouth Diameter	mm	65	65
Capacity	Capacity	B/h	300-500	1000-1300
Electrical Parameter	Heating Oven Quantity	PCS	4-4	4-4
	Heating Lamp Quantity	PCS	13	13
	Heating Configuration Power	KW	72	72
	Total Power Capacity	KW	80	80
	Voltage	V	380V50HZ	380V50HZ
Air Source Parameter	Working Pressure	MPA	0.7-0.9	0.7-0.9
	Blowing Pressure	MPA	2.5-3.0	2.5-3.0
	Air supply	m³/min	5.0/3.0	8.0/3.0
	Total Power	KW	55	88
Cooling Chiller Parameter	Temperature	℃	9-13	9-13
	Pressure	MPA	0.4	0.4
	Rated Power	HP	5	5
Dimension	Host Machine Size	MM	4000+1800+2200	5000+1800+2200
	Weight	T	4.5	5.5

Category	Parameter	Unit	YDBA-0.6L-4	YDBA-2L-4
Host Machine Parameter	Cavity	pcs	4	4
	Clamping Force	KG	48000	48000
	Mold Route	mm	125	125
	Stretching Rod Route	mm	330	330
	Bottom Mold Route	mm	40/70	50
	Bottle Spacing	mm	76.2	114.3（140）
	Bottle Preform Number	pcs	78	78
Products Parameter	Max Volume	ml	600	1500
	Max Bottle Body Height	mm	330	330
	Max Bottle Body Diameter	mm	70	105
	Max Bottle Preform Height	mm	140	140
	Max Bottle Mouth Diameter	mm	38	38
Capacity	Capacity	B/h	4000-6000	4000-6000
Electrical Parameter	Heating Oven Quantity	PCS	5+5	5+5
	Heating Lamp Quantity	PCS	5+9	5+9
	Heating Configuration Power	KW	60	60
	Total Power Capacity	KW	72	72
	Voltage	V	380V50HZ	380V50HZ
Air Source Parameter	Working Pressure	MPA	0.7-0.9	0.7-0.9
	Blowing Pressure	MPA	2.5-3.0	2.5-3.0
	Air supply	m³/min	5.0/3.0	5.0/3.0
	Total Power	KW	55	55
Cooling Chiller Parameter	Temperature	℃	9-13	9-13
	Pressure	MPA	0.4	0.4
	Rated Power	HP	5	5
Dimension	Host Machine Size	MM	4800×2200×2200	4800×2200×2200
	Weight	T	3.5	4.2

Category	Parameter	Unit	YDBA-5L-1	YDBA-5L-2	YDBA-10L-1	YDBA-10L-2
Host Machine Parameter	Cavity	pcs	1	2	1	2
	Clamping Force	KG	65000	65000	65000	65000
	Mold Route	mm	260	260	300	300
	Stretching Rod Route	mm	350	350	440	440
	Bottom Mold Route	mm	50	50	50	50
	Bottle Spacing	mm	200	220	260	260
	Bottle Preform Number	pcs	30	78	52	78
Products Parameter	Max Volume	ml	6000	6000	12000	12000
	Max Bottle Body Height	mm	350	350	420	420
	Max Bottle Body Diameter	mm	180	180	200	200
	Max Bottle Preform Height	mm	200	200	240	200
	Max Bottle Mouth Diameter	mm	45	45	55	55
Capacity	Capacity	B/h	400-600	1200-1500	500-700	1000-1300
Electrical Parameter	Heating Oven Quantity	PCS	4-4	4-4	4-4	4-4
	Heating Lamp Quantity	PCS	10	10	13	13
	Heating Configuration Power	KW	72	72	72	72
	Total Power Capacity	KW	82	82	80	80
	Voltage	V	380V50HZ	380V50HZ	380V50HZ	380V50HZ
Air Source Parameter	Working Pressure	MPA	0.7-0.9	0.7-0.9	0.7-0.9	0.7-0.9
	Blowing Pressure	MPA	2.5-3.0	2.5-3.0	2.5-3.0	2.5-3.0
	Air supply	m³/min	4.8/3.0	6.0/3.0	5.0/3.0	8.0/3.0
	Total Power	KW	45	66	55	88
Cooling Chiller Parameter	Temperature	℃	9-13	9-13	9-13	9-13
	Pressure	MPA	0.4	0.4	0.4	0.4
	Rated Power	HP	5	5	5	5
Dimension	Host Machine Size	MM	4000×1800×2200	4800×1800×2200	4000×1800×2200	5000×1800×2200
	Weight	T	4.5	5.0	4.5	5.5

Key Features and Benefit

Servo Motor Energy Saving: Equipped with advanced servo motors, this machine significantly reduces energy consumption. The servo system only uses power when needed, unlike traditional machines, leading to lower electricity costs and a more environmentally friendly operation.

Wide Production Range: This machine offers great versatility. It can efficiently produce bottles from a small 200ml size up to a large 20L capacity. This flexibility allows you to serve different market needs with just one machine.

Optimized for Medium Output: Specifically designed for small to medium production volumes, it balances speed with practicality. For a standard 500ml bottle, it achieves a stable output of 2,000 to 6,000 bottles per hour, meeting the demands of many regional brands and contract fillers.

Excellent Bottle Quality: It ensures high-quality blowing with even wall thickness distribution. This results in strong, lightweight bottles with brilliant clarity that perfectly showcase your product.

Quick Mold Changeover: The user-friendly design allows for fast and easy mold changes. This minimizes downtime when switching between different bottle designs, boosting your overall production efficiency.

Primary Applications

This machine is ideal for creating a variety of PET bottles used in many industries:

1. Beverages: Producing bottles for purified water, carbonated soft drinks (CSD), juices, and ready-to-drink teas.

2. Food & Cooking Oil: Manufacturing clean and safe containers for edible oil, sauces, and syrups.

3. Household & Chemicals: Making bottles for liquid detergents, cleaning agents, and other household chemicals.

4. Pharmaceutical & Cosmetic: Blowing bottles for mouthwash, shampoo, and other personal care products.
